Very high velocities can cause sink holes when soil. When your foundation is built and before your concrete slab floor is placed the builders will create a level surface by filling in some of the space with dirt. Videos you watch may be added to the TVs watch history and influence TV recommendations. These branch lines connect toilets showers sinks washing machines dishwashers etc. To avoid this cancel and sign in to YouTube on. Interior Weeping Tile System Installation With Sump - YouTube. The attached diagram is actually for the walkout wall which spans most of my southern wall.

- Auguring a new hole all the way down to the weeping or drainage pipe.

For the East Kildonan home installation of a perforated sump pit and pump will help minimize the wet floor by collecting excess water from beneath the slab but may only be localized and not dry out. A French drain or weeping tile system can be one of the most effective solutions for prevent water from getting into a basement and for protecting a foundation against water that may penetrate the concrete. At the bottom of the foundation drainage trench install rigid French drain piping weeping tile that can drain to a lower level. Desirable minimum working grade is 02 Typical minimum pipe size is 3 - 4 in humid regions and 5- 6 for organic soils. We see a lot of basement weeping tile installation in addition to the sump pump. Cover the French drain with a layer of crushed stone then cover it.

Weeping Tile How They Protect Your Home Ratehub Ca

Weeping tile system diagram. Any weeping tile system should be installed above that level of dirt to keep from clogging. These branch lines connect toilets showers sinks washing machines dishwashers etc. One of the most common ways they fail is through clogs.

Desirable minimum working grade is 02 Typical minimum pipe size is 3 - 4 in humid regions and 5- 6 for organic soils. When a house is constructed a certain amount of dirt around the perimeter of the home is excavated. They are used mostly for underground drainage.

To the corresponding vertical stack which carries. Weeping Tile and Waterproofing Go to Diagram Weeping tile is the porous piping found underground for water collection and discharge. This is a picture showing the installation of weeping tile next to the footing of a home constructed in 2009.

For the East Kildonan home installation of a perforated sump pit and pump will help minimize the wet floor by collecting excess water from beneath the slab but may only be localized and not dry out. There will not be an actual connection of the well drain to the perimeter drain pipe. Cover the French drain with a layer of crushed stone then cover it.

The weeping tile system was developed by Henry Flagg French from Massachusetts. It is Not Recommended to drain your rain water from Downspouts into the Weeping Tile. The attached diagram is actually for the walkout wall which spans most of my southern wall.

Finally he should cover the drain tile with about 2 or 3 feet of gravel not 3 inches like you see. The purpose of weeping tile also referred to as drainage tile or drain tile is to provide a drainage point for draining water that has accumulated at the base of the foundation the. Pipe Size and Grades.

The pipe is buried in the soil such that the weep holes are below the foundation. When your foundation is built and before your concrete slab floor is placed the builders will create a level surface by filling in some of the space with dirt.

Weeping Tile How They Protect Your Home Ratehub Ca

What Is A Drain Tile System Milani

Everything You Need To Know About Weeping Tile Aquamaster Plumbing

Interior Weeping Tile Drainage System Canadian Home Inspection Services

Interior Weeping Tile Drainage System Canadian Home Inspection Services

Interior Basement Waterproofing Benji Dittrich Construction

Int Ext Weeping Tile Systems In Oakville G J Macrae Foundation Repair

6 Iclr Narrated Animation Weeping Tiles And Sump Pumps Youtube

Arrow Service Team Darin Tile North Dakota

Installing Weeping Tile Systems Ab Weeping Tiles

Sump Pit Drainage Systems Residential Lot Grading Drainage Flooding Water And Waste City Of Winnipeg

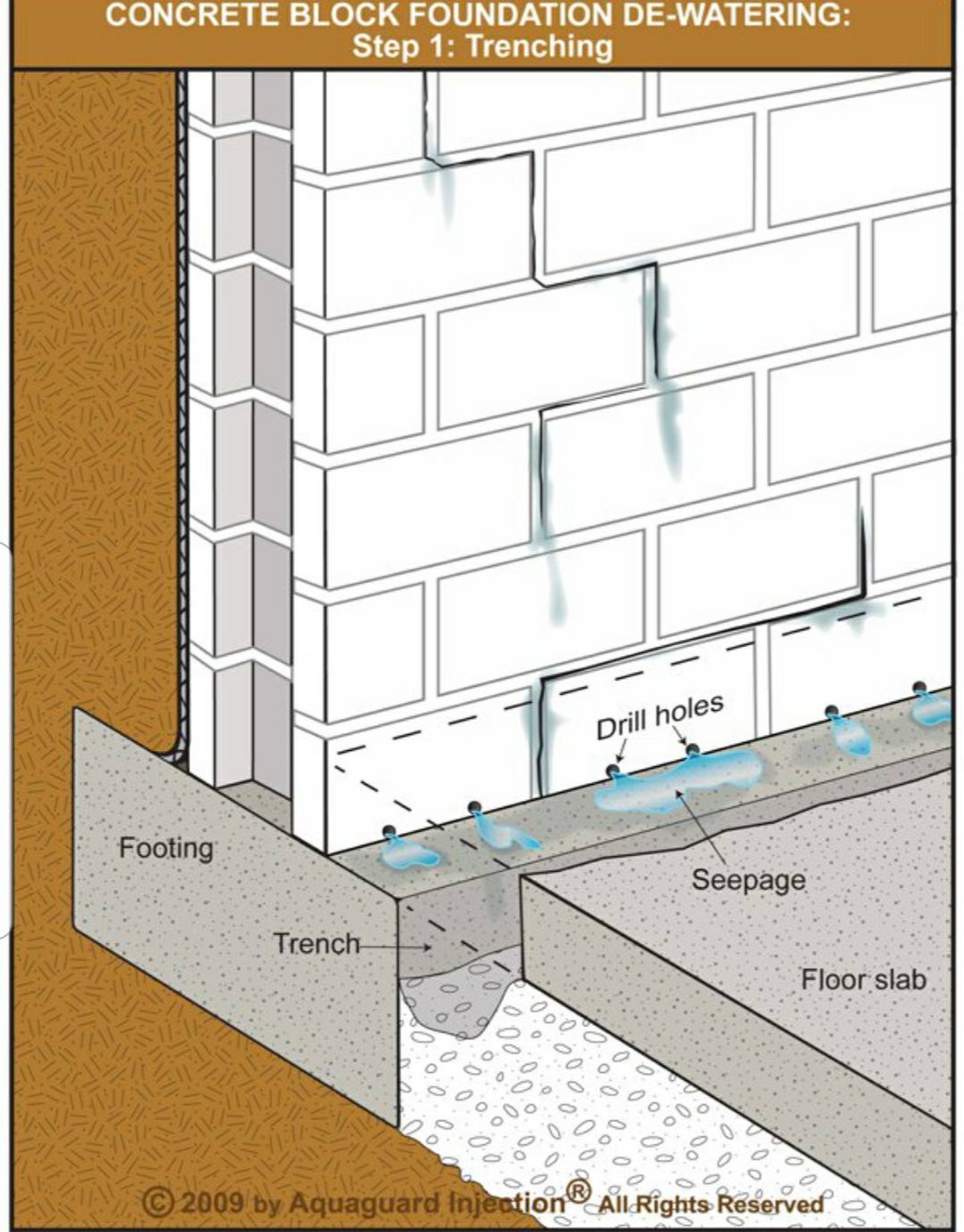

Weeping Tile Installation Aquaguard Injection Waterproofing
